HOSE HANDLING CRANE
닫기

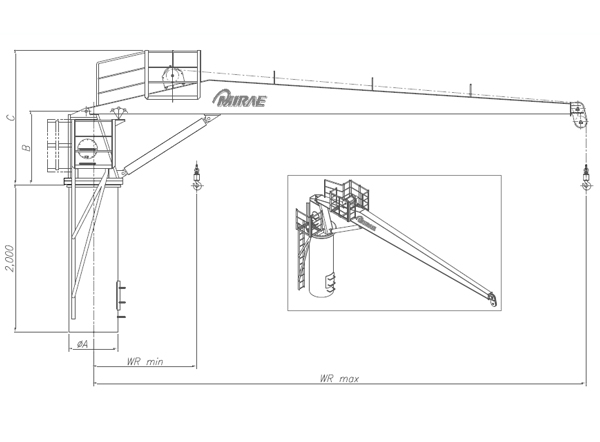

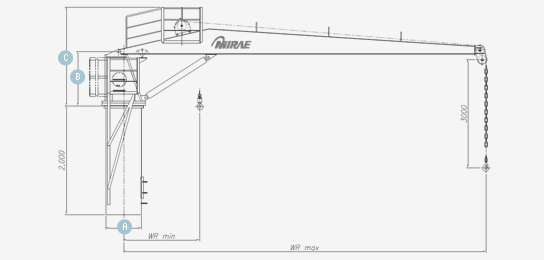

Technical Specification and Demensiont
| Capstan Type |
Capstan Capacity (Ton) |
Outreach | Hoisting speed (m/min) |
Slewing speed (rpm) |
Weight (ton) |
Dimension (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| WR max (m) | WR min (m) | A | B | C | |||||
| MRHHC-0312 | 3 | 12 | 2.1 | 10/20 | 0.5 | 5.5 | 970 | 2100 | 3100 |
| MRHHC-0316 | 3 | 16 | 2.7 | 10/20 | 0.5 | 6.0 | 970 | 2100 | 3100 |
| MRHHC-0416 | 4 | 16 | 2.5 | 10/20 | 0.5 | 7.0 | 1210 | 2100 | 3100 |
| MRHHC-0516 | 5 | 16 | 2.5 | 10/20 | 0.5 | 9.5 | 1210 | 2200 | 3500 |
| MRHHC-0520 | 5 | 20 | 4.0 | 10/20 | 0.5 | 10.0 | 1210 | 2200 | 3500 |
| MRHHC-0616 | 6 | 16 | 2.5 | 10/20 | 0.5 | 9.9 | 1210 | 2200 | 3500 |
| MRHHC-0620 | 6 | 20 | 3.6 | 10/20 | 0.5 | 11.0 | 1720 | 2200 | 3500 |
| MRHHC-0816 | 8 | 16 | 3.2 | 10/20 | 0.5 | 12.0 | 1720 | 2200 | 4700 |
| MRHHC-0820 | 8 | 20 | 3.5 | 10/20 | 0.5 | 16.5 | 1800 | 3000 | 4700 |
| MRHHC-1016 | 10 | 16 | 3.2 | 10/20 | 0.5 | 13.5 | 1720 | 2200 | 3700 |
| MRHHC-1022 | 10 | 22 | 4.0 | 10/20 | 0.5 | 16.0 | 1800 | 3000 | 4700 |
| MRHHC-1520 | 15 | 20 | 3.5 | 10/20 | 0.5 | 23.0 | 2550 | 3200 | 5000 |
| MRHHC-1526 | 15 | 26 | 4.5 | 10/20 | 0.5 | 25.0 | 2550 | 3200 | 5000 |
| MRHHC-2016 | 20 | 16 | 3.1 | 10/20 | 0.5 | 22.5 | 2550 | 3200 | 5000 |
| MRHHC-2020 | 20 | 20 | 4.2 | 10/20 | 0.5 | 24.5 | 2550 | 3200 | 5000 |
