Hyd’ Windlass combined cable lifterunit and anchor mooring winch
닫기
Technical specification and weight
| Windlass Type | Chaindia. G3 (mm) |
Mooring winch Capacity (Ton) |
Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Warping end Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| HCU-58-G3 + HMW-12 | 58 | 12 | 26 | 0 ~ 15 | 0 ~ 30 | 12.5 | 6100 |
| HCU-60-G3 + HMW-12 | 60 | 12 | 26 | 12.5 | 6100 | ||
| HCU-62-G3 + HMW-12 | 62 | 12 | 26 | 12.5 | 6950 | ||
| HCU-64-G3 + HMW-12 | 64 | 12 | 26 | 12.5 | 6950 | ||
| HCU-66-G3 + HMW-12 | 66 | 12 | 26 | 12.5 | 7350 | ||
| HCU-68-G3 + HMW-15 | 68 | 15 | 30 | 15 | 7850 | ||
| HCU-70-G3 + HMW-15 | 70 | 15 | 30 | 15 | 8350 | ||
| HCU-73-G3 + HMW-15 | 73 | 15 | 30 | 15 | 8350 | ||
| HCU-76-G3 + HMW-15 | 76 | 15 | 30 | 15 | 8650 | ||
| HCU-78-G3 + HMW-15 | 78 | 15 | 30 | 15 | 8650 | ||
| HCU-81-G3 + HMW-15 | 81 | 15 | 30 | 15 | 9350 | ||
| HCU-84-G3 + HMW-15 | 84 | 15 | 30 | 15 | 9350 | ||
| HCU-87-G3 + HMW-20 | 87 | 20 | 34 | 20 | 10750 | ||
| HCU-90-G3 + HMW-20 | 90 | 20 | 34 | 20 | 10750 | ||
| HCU-92-G3 + HMW-20 | 92 | 20 | 34 | 20 | 13850 | ||
| HCU-95-G3 + HMW-20 | 95 | 20 | 34 | 20 | 13850 | ||
| HCU-97-G3 + HMW-20 | 97 | 20 | 34 | 20 | 14450 | ||
| HCU-98-G3 + HMW-20 | 98 | 20 | 34 | 20 | 14450 | ||
| HCU-100-G3 + HMW-25 | 100 | 25 | 34 | 25 | 15350 | ||
| HCU-102-G3 + HMW-25 | 102 | 25 | 38 | 25 | 16150 | ||
| HCU-105-G3 + HMW-25 | 105 | 25 | 38 | 25 | 16150 | ||
| HCU-107-G3 + HMW-30 | 107 | 30 | 44 | 30 | 21150 | ||
| HCU-108-G3 + HMW-30 | 108 | 30 | 44 | 30 | 21150 | ||
| HCU-111-G3 + HMW-30 | 111 | 30 | 44 | 30 | 21150 | ||
| HCU-114-G3 + HMW-30 | 114 | 30 | 44 | 30 | 28150 | ||
| HCU-117-G3 + HMW-30 | 117 | 30 | 44 | 30 | 28150 | ||
| HCU-112-G3 + HMW-32 | 122 | 32 | 42 | 32 | 20000 |

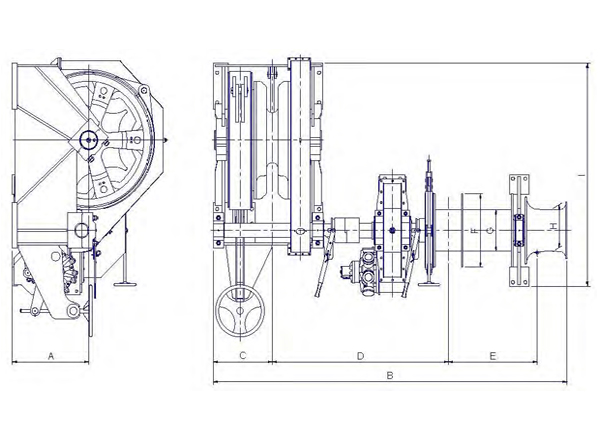

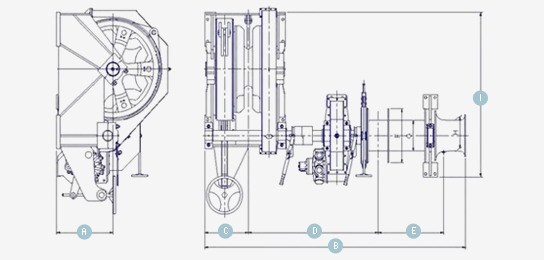

Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| HCU-58-G3 + HMW-12 | 800 | 3560 | 530 | 1520 | 1100 | 900 | 420 | 450 | 2100 |
| HCU-60-G3 + HMW-12 | |||||||||
| HCU-62-G3 + HMW-12 | 800 | 3580 | 530 | 1550 | 1100 | 900 | 420 | 450 | 2100 |
| HCU-64-G3 + HMW-12 | |||||||||
| HCU-66-G3 + HMW-12 | 900 | 3690 | 655 | 1590 | 1100 | 960 | 420 | 450 | 2200 |
| HCU-68-G3 + HMW-15 | |||||||||
| HCU-70-G3 + HMW-15 | 900 | 4250 | 655 | 2150 | 1140 | 960 | 480 | 500 | 2200 |
| HCU-73-G3 + HMW-15 | |||||||||
| HCU-76-G3 + HMW-15 | 1000 | 4275 | 660 | 2170 | 1140 | 960 | 480 | 500 | 2400 |
| HCU-78-G3 + HMW-15 | |||||||||
| HCU-81-G3 + HMW-15 | 1000 | 4350 | 680 | 2220 | 1140 | 960 | 480 | 500 | 2600 |
| HCU-84-G3 + HMW-15 | |||||||||
| HCU-87-G3 + HMW-20 | 1000 | 4455 | 715 | 2220 | 1160 | 1100 | 550 | 560 | 2830 |
| HCU-90-G3 + HMW-20 | |||||||||
| HCU-92-G3 + HMW-20 | 1000 | 4565 | 775 | 2270 | 1160 | 1100 | 550 | 560 | 2930 |
| HCU-95-G3 + HMW-20 | |||||||||
| HCU-97-G3 + HMW-20 | 1100 | 5120 | 835 | 2625 | 1160 | 1100 | 550 | 560 | 3030 |
| HCU-98-G3 + HMW-20 | |||||||||
| HCU-100-G3 + HMW-25 | |||||||||
| HCU-102-G3 + HMW-25 | 1100 | 5210 | 855 | 2645 | 1180 | 1220 | 610 | 630 | 3100 |
| HCU-105-G3 + HMW-25 | |||||||||
| HCU-107-G3 + HMW-30 | 1200 | 5460 | 935 | 2725 | 1200 | 1420 | 710 | 630 | 3300 |
| HCU-108-G3 + HMW-30 | |||||||||
| HCU-111-G3 + HMW-30 | |||||||||
| HCU-114-G3 + HMW-30 | 1200 | 5570 | 965 | 2805 | 1200 | 1420 | 710 | 630 | 3600 |
| HCU-117-G3 + HMW-30 | |||||||||
| HCU-122-G3 + HMW-32 | 1450 | 5400 | 1030 | 2320 | 1300 | 1600 | 700 | 560 | 5360 |
