ELEC’ CAPSTAN
닫기
Technical specification and weight
| Capstan Type |
Capstan Capacity (Ton) |
Wire Rope dia. (mm) |
Winding Speed (m/min) |
Oil flow (ℓ/min) |
Rated point (Layer) |
Weight (kg) |
|---|---|---|---|---|---|---|
| ECT-5-1W | 5 | 50 | 15 | 19 | 1st | 1670 |
| ECT-10-1W | 10 | 50 | 15 | 30 | 1st | 3070 |
| ECT-12-1W | 12 | 50 | 15 | 37 | 1st | 3091 |

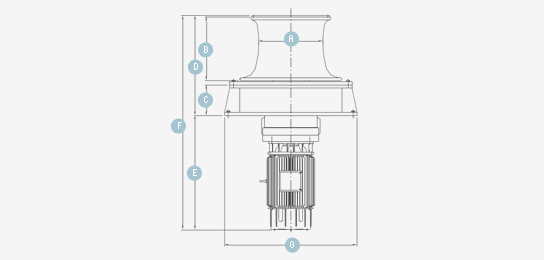

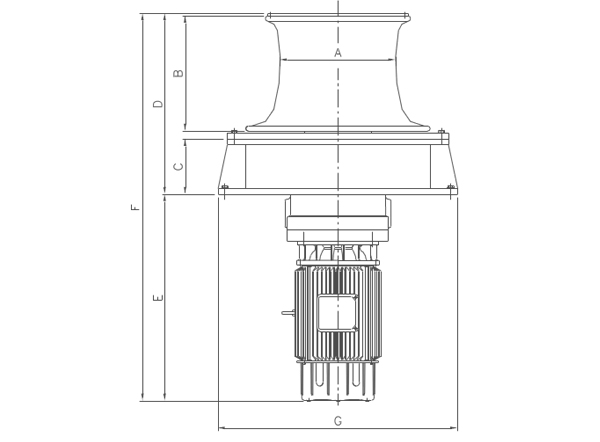

Demension
| Windlass Type | Dimension (mm) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| ECT-5-1W | 500 | 500 | 240 | 785 | 897 | 1682 | 850 |
| ECT-10-1W | 450 | 450 | 615 | 1205 | 935 | 2140 | 1500 |
| ECT-12-1W | 450 | 450 | 615 | 1205 | 990 | 2195 | 1500 |
