Hyd’ capstan
닫기
Technical specification and weight
| Capstan Type |
Capstan Capacity (Ton) |
Wire Rope dia. (mm) |
Winding Speed (m/min) |
Oil flow (ℓ/min) |
Rated point (Layer) |
Weight (kg) |
|---|---|---|---|---|---|---|
| HCT-5-1W | 5 | 50 | 12 | 57 | 1st | 1480 |
| HCT-10-1W | 10 | 33.5 | 30 | 305 | 1st | 2920 |
| HCT-12-1W | 12 | 40 | 10 | 97.5 | 1st | 3070 |

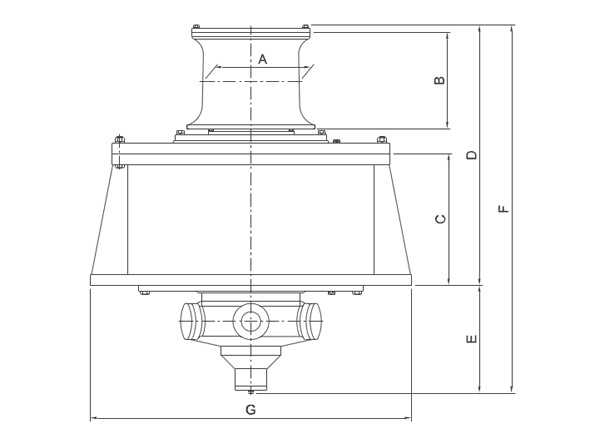

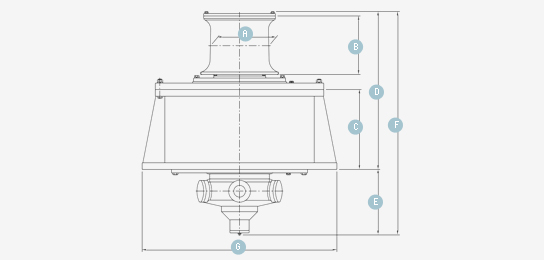

Demension
| Windlass Type | Dimension (mm) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| ECT-5-1W | 400 | 500 | 240 | 776 | 421 | 1197 | 850 |
| ECT-10-1W | 450 | 450 | 615 | 1214 | 503 | 1717 | 1500 |
| ECT-12-1W | 450 | 450 | 615 | 1214 | 532 | 1746 | 1500 |
