PROVISION CRANE 조선해양기자재의 명가 미래인더스트리(주)입니다.
- 사업분야
- 상선분야
- PROVISION CRANE
PROVISION CRANE
닫기

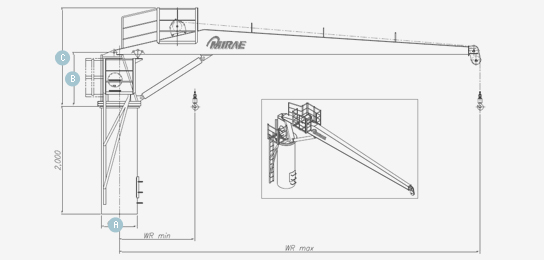

Technical Specification and Demensiont
| Capstan Type |
Capstan Capacity (Ton) |
Outreach | Hoisting speed (m/min) |
Slewing speed (rpm) |
Weight (ton) |
Dimension (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| WR max (m) | WR min (m) | A | B | C | |||||
| MRHPV-0108 | 1 | 8 | 1.6 | 10 | 0.5 | 2.2 | 600 | 1200 | 1900 |
| MRHPV-0112 | 1 | 12 | 2.2 | 10 | 0.5 | 2.9 | 600 | 1350 | 2100 |
| MRHPV-0116 | 1 | 16 | 3.2 | 10 | 0.5 | 3.3 | 600 | 1350 | 2100 |
| MRHPV-0208 | 2 | 8 | 1.6 | 10 | 0.5 | 2.8 | 770 | 1750 | 2850 |
| MRHPV-0212 | 2 | 12 | 2.5 | 10 | 0.5 | 3.3 | 770 | 1750 | 2850 |
| MRHPV-0216 | 2 | 16 | 3.2 | 10 | 0.5 | 5.3 | 930 | 2000 | 3150 |
| MRHPV-0308 | 3 | 8 | 1.6 | 10 | 0.5 | 3.2 | 770 | 1750 | 2850 |
| MRHPV-0312 | 3 | 12 | 2.0 | 10 | 0.5 | 5.2 | 930 | 2000 | 3150 |
| MRHPV-0316 | 3 | 16 | 2.7 | 10 | 0.5 | 5.9 | 930 | 2000 | 3150 |
| MRHPV-0408 | 4 | 8 | 1.6 | 10 | 0.5 | 5.0 | 930 | 2000 | 3150 |
| MRHPV-0412 | 4 | 12 | 2.0 | 10 | 0.5 | 5.4 | 930 | 2000 | 3150 |
| MRHPV-0416 | 4 | 16 | 2.5 | 10 | 0.5 | 7.0 | 1200 | 2000 | 3150 |
| MRHPV-0420 | 4 | 20 | 4.0 | 10 | 0.5 | 10.0 | 1200 | 2130 | 3600 |
| MRHPV-0508 | 5 | 8 | 1.6 | 10 | 0.5 | 5.2 | 930 | 2000 | 3150 |
| MRHPV-0512 | 5 | 12 | 2.0 | 10 | 0.5 | 7.0 | 1200 | 2000 | 3150 |
| MRHPV-0516 | 5 | 16 | 2.5 | 10 | 0.5 | 9.5 | 1200 | 2130 | 3600 |
