Elec’ windlass combined cable lifter unit and anchor mooring winch
닫기
Technical specification and weight
| Windlass Type |
Chaindia. G3 (mm) |
Mooring winch Capacity (Ton) |
Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Warping end Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| ECU-58-G3 + EMW-12 | 58 | 12 | 26 | 0 ~ 15 | 0 ~ 30 | 12.5 | 6600 |
| ECU-60-G3 + EMW-12 | 60 | 12 | 26 | 12.5 | 6600 | ||
| ECU-62-G3 + EMW-12 | 62 | 12 | 26 | 12.5 | 7550 | ||
| ECU-64-G3 + EMW-12 | 64 | 12 | 26 | 12.5 | 7550 | ||
| ECU-66-G3 + EMW-12 | 66 | 12 | 26 | 12.5 | 7950 | ||
| ECU-68-G3 + EMW-15 | 68 | 15 | 30 | 15 | 8450 | ||
| ECU-70-G3 + EMW-15 | 70 | 15 | 30 | 15 | 8950 | ||
| ECU-73-G3 + EMW-15 | 73 | 15 | 30 | 15 | 8950 | ||
| ECU-76-G3 + EMW-15 | 76 | 15 | 30 | 15 | 9250 | ||
| ECU-78-G3 + EMW-15 | 78 | 15 | 30 | 15 | 9250 | ||
| ECU-81-G3 + EMW-15 | 81 | 15 | 30 | 15 | 9950 | ||
| ECU-84-G3 + EMW-15 | 84 | 15 | 30 | 15 | 9950 | ||
| ECU-87-G3 + EMW-20 | 87 | 20 | 34 | 20 | 11350 | ||
| ECU-90-G3 + EMW-20 | 90 | 20 | 34 | 20 | 11350 | ||
| ECU-92-G3 + EMW-20 | 92 | 20 | 34 | 20 | 14450 | ||
| ECU-95-G3 + EMW-20 | 95 | 20 | 34 | 20 | 14450 | ||
| ECU-97-G3 + EMW-20 | 97 | 20 | 34 | 20 | 15050 | ||
| ECU-98-G3 + EMW-20 | 98 | 20 | 34 | 20 | 15050 | ||
| ECU-100-G3 + EMW-25 | 100 | 25 | 34 | 25 | 15950 | ||
| ECU-102-G3 + EMW-25 | 102 | 25 | 38 | 25 | 16750 | ||
| ECU-105-G3 + EMW-25 | 105 | 25 | 38 | 25 | 16750 | ||
| ECU-107-G3 + EMW-30 | 107 | 30 | 44 | 30 | 21750 | ||
| ECU-108-G3 + EMW-30 | 108 | 30 | 44 | 30 | 21750 | ||
| ECU-111-G3 + EMW-30 | 111 | 30 | 44 | 30 | 21750 | ||
| ECU-114-G3 + EMW-30 | 114 | 30 | 44 | 30 | 28750 | ||
| ECU-117-G3 + EMW-30 | 117 | 30 | 44 | 30 | 28750 | ||
| ECU-127-G3 + EMW-30 | 127 | 30 | 80 | 30 | 21000 | ||
| ECU-132-G3 + EMW-30 | 132 | 30 | 100 | 30 | 32000 | ||
| ECU-142-G3 + EMW-30 | 142 | 35 | 78 | 35 | 35000 | ||
| ECU-147-G3 + EMW-30 | 147 | 35 | 80 | 35 | 37500 |

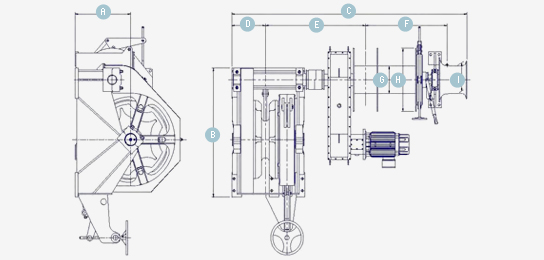

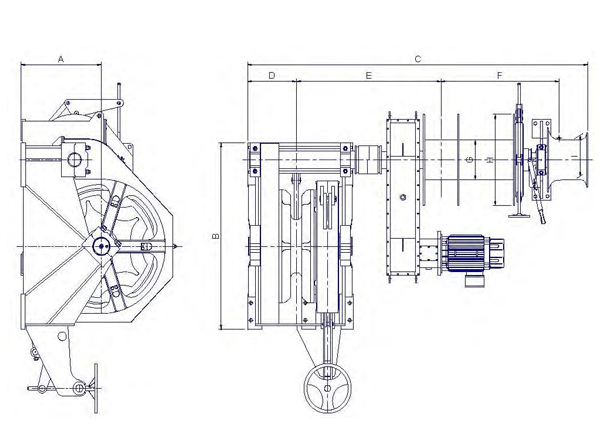

Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| ECU-58-G3 + EMW-12 | 800 | 2100 | 3370 | 670 | 1420 | 900 | 420 | 450 | 450 |
| ECU-60-G3 + EMW-12 | |||||||||
| ECU-62-G3 + EMW-12 | 800 | 2100 | 3430 | 670 | 1450 | 900 | 420 | 450 | 450 |
| ECU-64-G3 + EMW-12 | |||||||||
| ECU-66-G3 + EMW-12 | 900 | 2300 | 3510 | 645 | 1490 | 960 | 420 | 450 | 450 |
| ECU-68-G3 + EMW-15 | |||||||||
| ECU-70-G3 + EMW-15 | 900 | 2300 | 4100 | 645 | 2000 | 960 | 480 | 500 | 500 |
| ECU-73-G3 + EMW-15 | |||||||||
| ECU-76-G3 + EMW-15 | 1000 | 2350 | 4150 | 715 | 2020 | 1140 | 960 | 480 | 500 |
| ECU-78-G3 + EMW-15 | |||||||||
| ECU-81-G3 + EMW-15 | 1000 | 2350 | 4200 | 715 | 2070 | 1140 | 960 | 480 | 500 |
| ECU-84-G3 + EMW-15 | |||||||||
| ECU-87-G3 + EMW-20 | 1000 | 2450 | 4425 | 685 | 2070 | 1160 | 1100 | 550 | 560 |
| ECU-90-G3 + EMW-20 | |||||||||
| ECU-92-G3 + EMW-20 | 1000 | 2450 | 4425 | 635 | 2120 | 1160 | 1100 | 550 | 560 |
| ECU-95-G3 + EMW-20 | |||||||||
| ECU-97-G3 + EMW-20 | 1100 | 2450 | 4970 | 745 | 2625 | 1160 | 1100 | 550 | 560 |
| ECU-98-G3 + EMW-20 | |||||||||
| ECU-100-G3 + EMW-25 | |||||||||
| ECU-102-G3 + EMW-25 | 1100 | 2620 | 5210 | 745 | 2645 | 1180 | 1220 | 610 | 630 |
| ECU-105-G3 + EMW-25 | |||||||||
| ECU-107-G3 + EMW-30 | 1200 | 2630 | 5310 | 865 | 2725 | 1200 | 1420 | 710 | 630 |
| ECU-108-G3 + EMW-30 | |||||||||
| ECU-111-G3 + EMW-30 | |||||||||
| ECU-114-G3 + EMW-30 | 1200 | 2700 | 5420 | 1035 | 2805 | 1200 | 1420 | 710 | 630 |
| ECU-117-G3 + EMW-30 | |||||||||
| ECU-127-G3 + EMW-30 | 1000 | 5600 | 1000 | 2740 | 2740 | 1990 | 480 | 480 | 5280 |
| ECU-132-G3 + EMW-30 | 1000 | 6600 | 1000 | 2400 | 1850 | 1700 | 530 | 560 | 5510 |
| ECU-142-G3 + EMW-30 | 900 | 6160 | 1060 | 2580 | 2000 | 1685 | 480 | 480 | 5550 |
| ECU-147-G3 + EMW-30 | 1100 | 5830 | 1090 | 2580 | 1600 | 2000 | 480 | 480 | 5640 |
